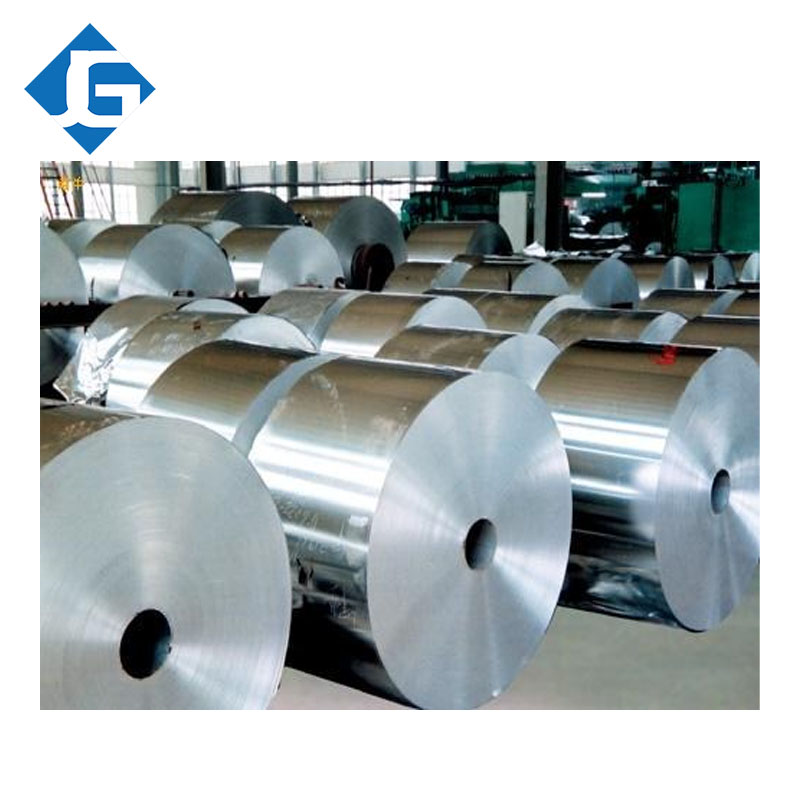

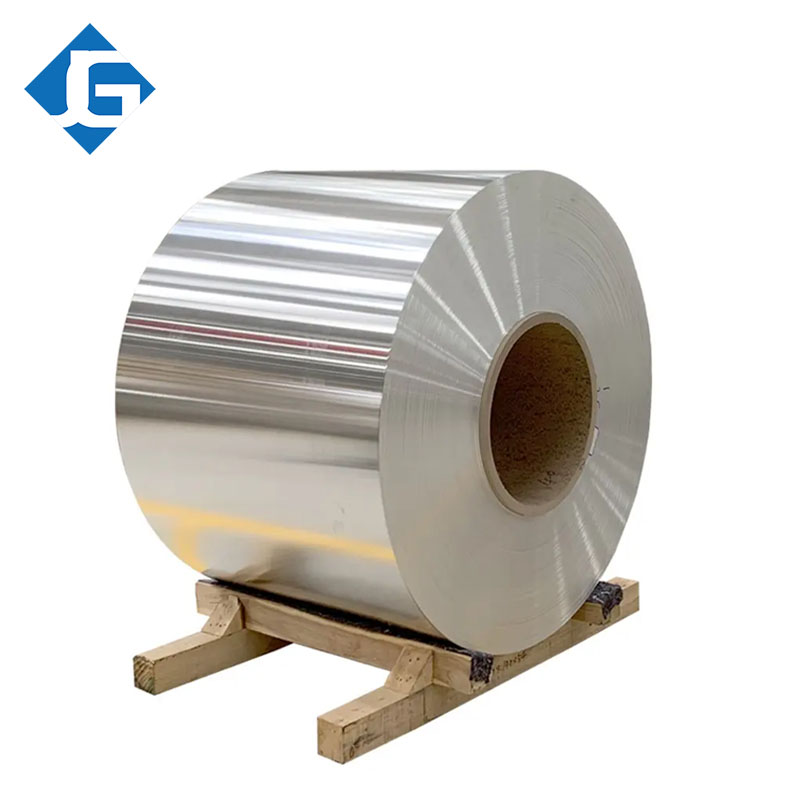

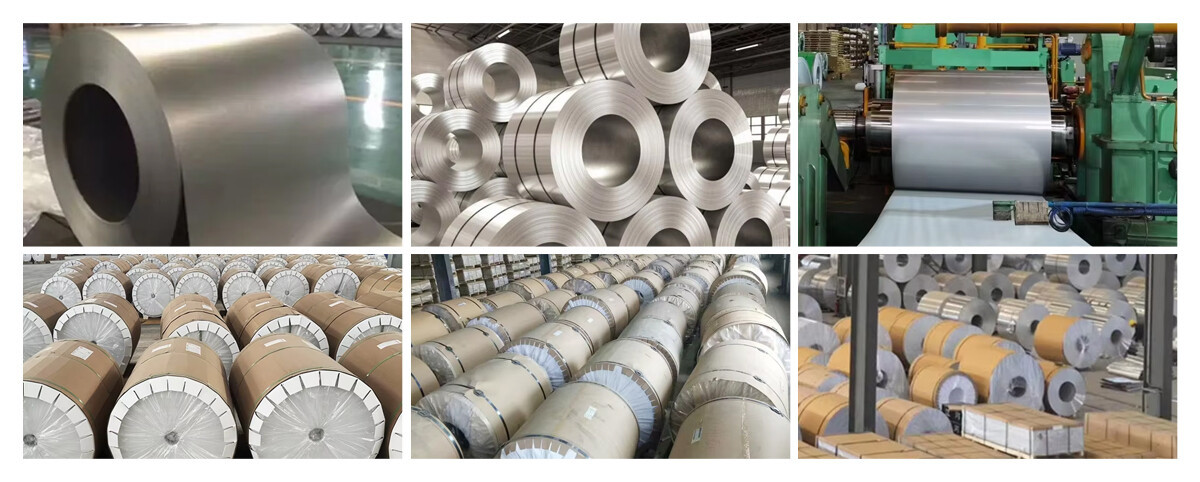

1000 Series aluminum coil

1000 Series Aluminum coil products are accurate in size and uniform in thickness.

Contact: Bojana

Phone: +86 18305305398

Whatsapp: +86 18305305398

Email: erya.lv@s-materialgroup.com

Wechat： +86 18305305398

Product Parameters

Product introduction

The 1000 series aluminum alloy is smelted from 99.5% pure aluminum, as well as trace amounts of copper, manganese, magnesium and other elements. The density of 1050 aluminum alloy is about 2.7g/cm, which is lighter than steel, helping to reduce product weight and improve energy efficiency. In addition, 1050 aluminum alloy has high strength and good fatigue resistance, which can increase the service life of 1050 aluminum coils. 1050 aluminum alloy also has excellent electrical and thermal conductivity, which makes the product's heat dissipation and energy transmission better. In addition, 1050 aluminum coils can resist corrosion from corrosive media such as acids, alkalis, and salts to a certain extent. Finally, 1050 aluminum alloy is easy to process and can be made into various profiles, plates, pipes, etc. through rolling, extrusion, and stretching.

Width	20-3000mm or customized
Length	100-12000mm or customized
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050 1060 1070 1100 1200 1235 etc.3000 Series: 3003 3004 3005 3104 3105 3A21 etc.5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc.6000 Series: 6061 6063 6082 6A02 etc.7000 Series: 7050 7475 7075 etc.8000 Series: 8A06 8011 8090 etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet standard seaworthy export packing or according to customer requirement
Thickness	0.1-120mm or customized
Certificate	ISO, SGS, BV

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.15	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Tensile Strength (MPa)	Test Stress0.2% (MPa)	HardnessHB	Elongation Rate(%)
105-145	≥85	≥34	≥12

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion	Resistivity
2.71 Kg/m³	650°C	71 GPa	222W/m.k	24 × 10-6/K	0.282 × 10-6Ω.m

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate
