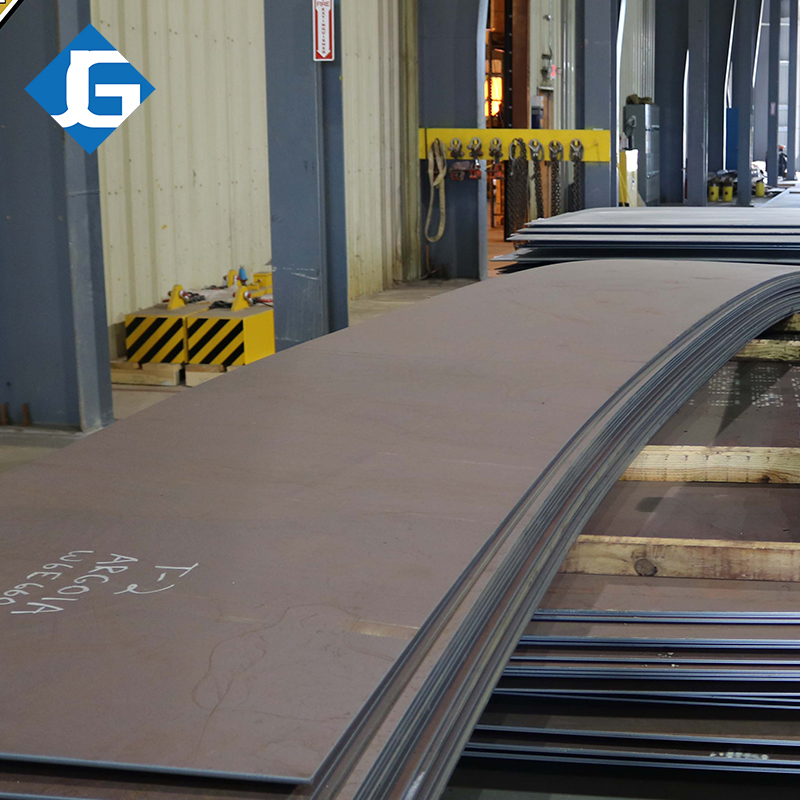

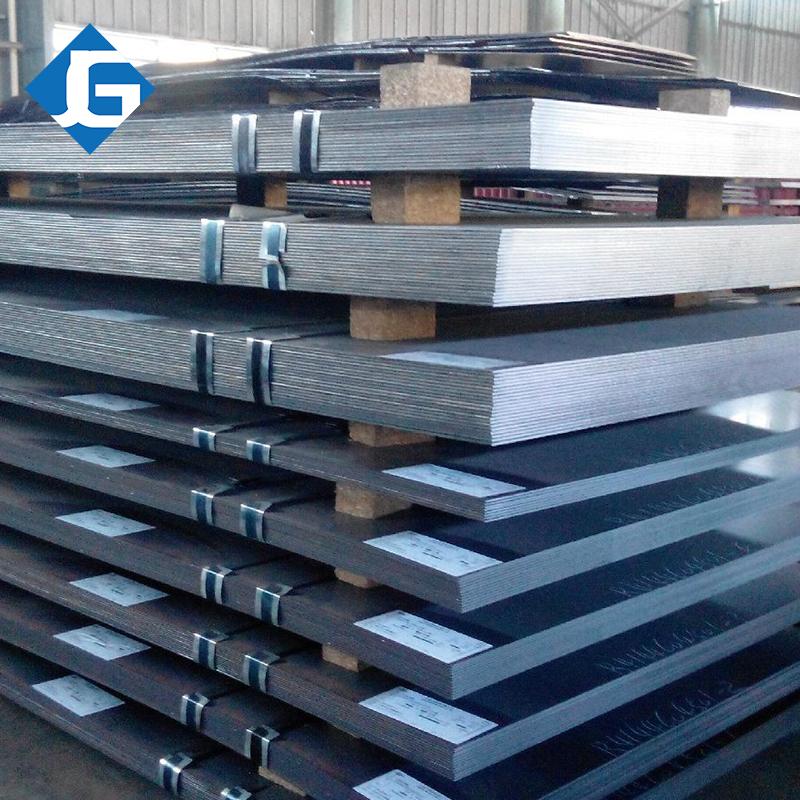

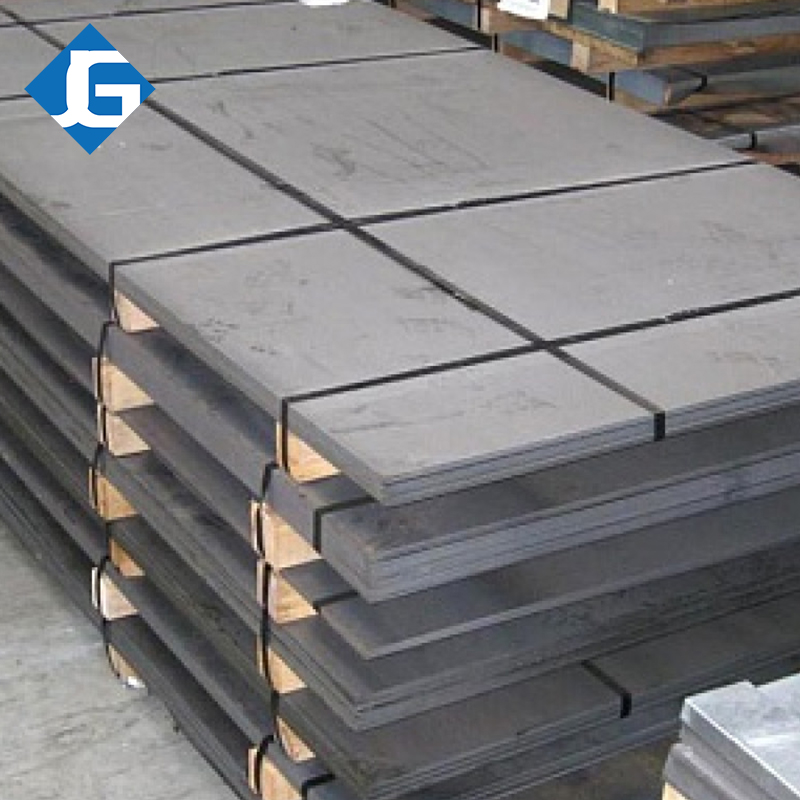

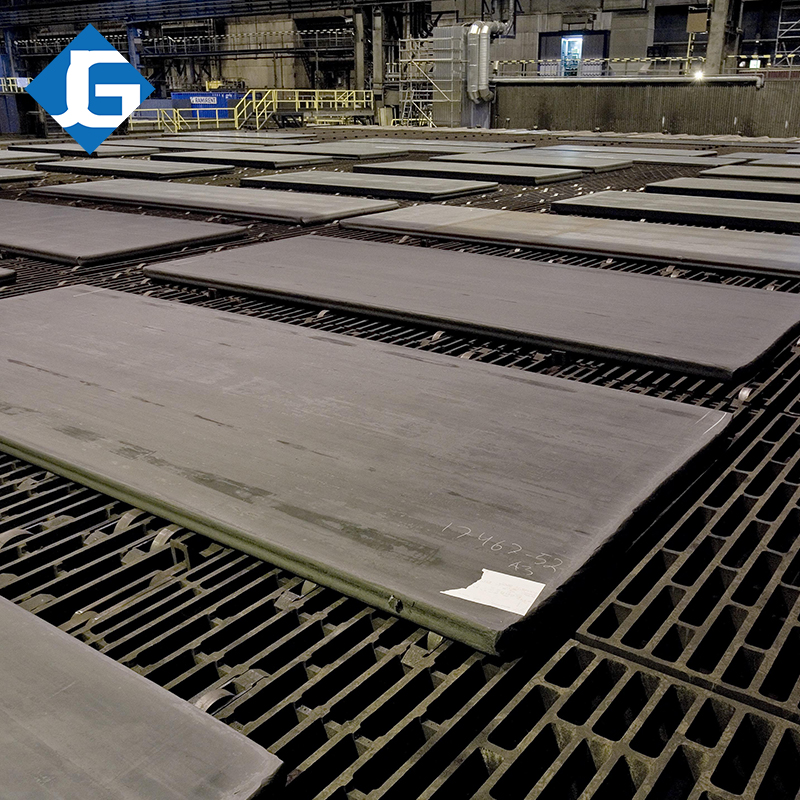

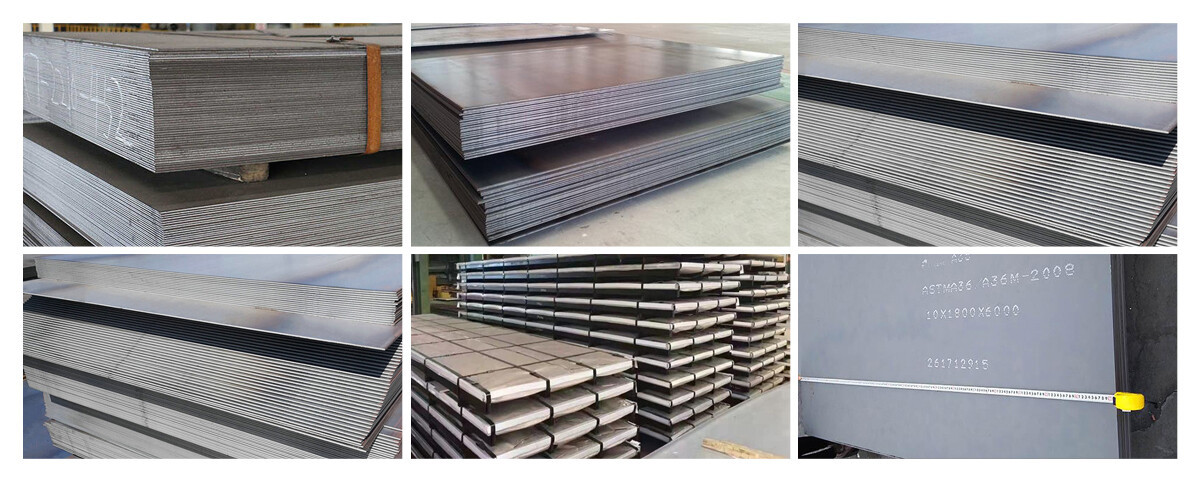

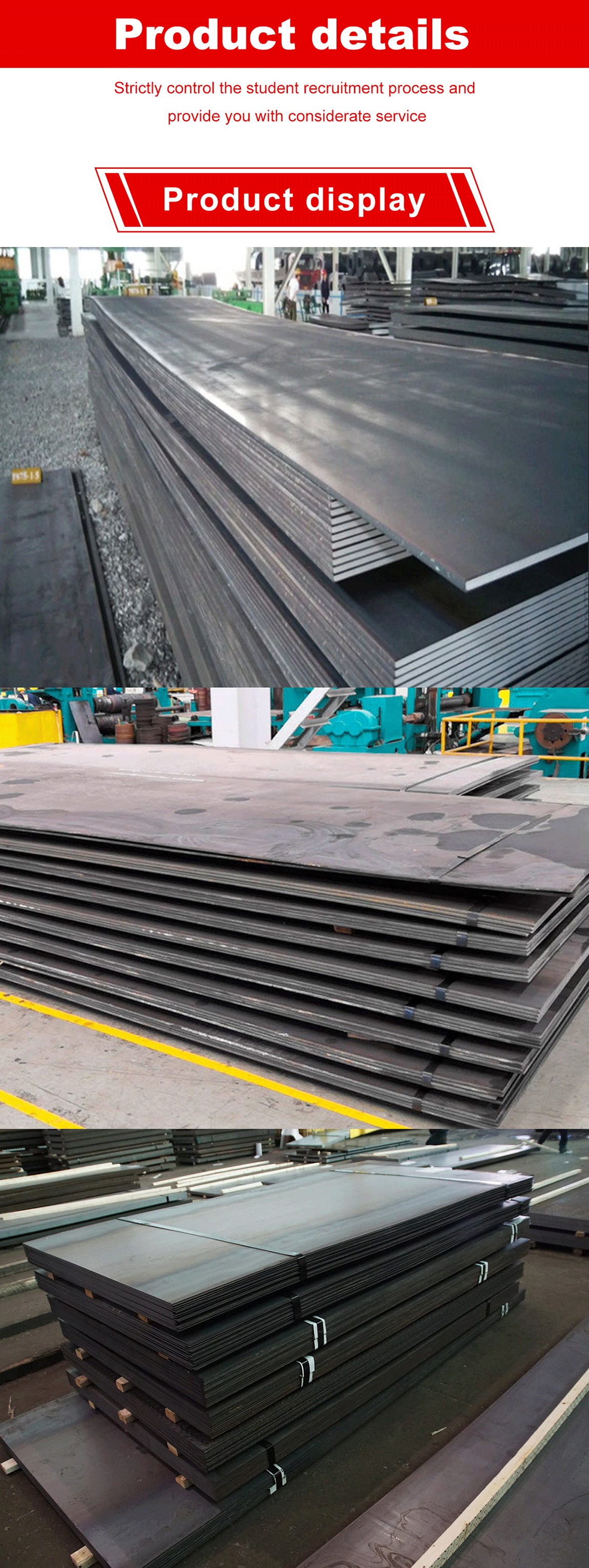

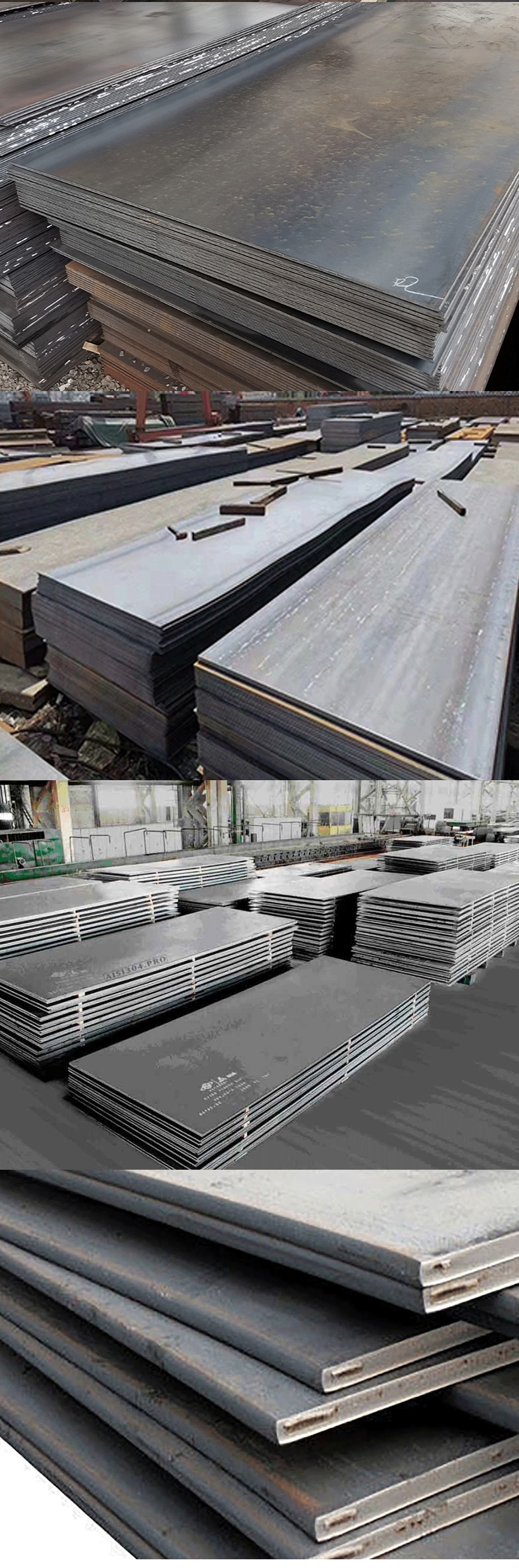

Carbon Steel Plate
Carbon steel plate is a type of material that is widely used. It is divided into ordinary low carbon steel plate and special steel plate, including low alloy high-strength steel and corrosion-resistant and heat-resistant clad steel plate.

Contact: Bojana

Phone: +86 18305305398

Whatsapp: +86 18305305398

Email: erya.lv@s-materialgroup.com

Wechat: +86 18305305398

Contact us
Product Parameters
Product introduction




The chemical composition of A36 steel plate is mainly composed of iron, carbon, silicon, manganese, phosphorus, sulfur and other elements. Among them, iron is the most important component, accounting for more than 99% of the entire chemical composition. The carbon content is relatively high, generally around 0.2%, ensuring that the steel has a certain hardness and toughness. The addition of silicon, manganese and other elements enhances the strength and toughness of steel. The content of elements such as phosphorus and sulfur is low to ensure that the steel plate has good welding performance and corrosion resistance. A36 steel plate has excellent mechanical properties, and its tensile strength, yield strength, elongation and impact toughness are all higher than ordinary steel.




Product NameHot rolled Hot Rolled Steel Sheet In Coil Steel Products S275 S355 A709 A517Carbon Steel Plate
MaterialQ195、Q215、Q235、Q255、Q275
levelA,B,C,D
Width50MM~2200MM, according to customer's requirement
THICKNESS1.8MM~20MM, according to customer's requirement
TECHNIQUEHot Rolled / Cold Rolled
PACKINGAccording to customer demand
MOQ1 Ton, more quantity price will be lower
DELIVERY TIMEUsually within 7-20 days after receipt of advance payment



Serial numbermodelsizeparameterSpecification
1Q235B6-120mm thick, 1500-4100mm wide, 6000-28000mm longYield strength 235MPa, tensile strength 375-500MPa, elongation ≥26%GB/T 700-2006
2Q345B6-120mm thick, 1500-4100mm wide, 6000-28000mm longYield strength 345MPa, tensile strength 470-630MPa, elongation ≥21%GB/T 1591-2008
320#6-120mm thick, 1500-4100mm wide, 6000-28000mm longYield strength ≥245MPa, tensile strength ≥410MPa, elongation ≥25%GB/T 699-1999
445#6-120mm thick, 1500-4100mm wide, 6000-28000mm longYield strength ≥600MPa, tensile strength ≥735MPa, elongation ≥12%GB 699-1988
5A363-200mm thick, 1220-4200mm wide, 5000-18000mm longYield strength 250MPa, tensile strength 400-550MPa, elongation ≥20%ASTM A36/A36M-08
6SS4001.8-20mm thick, 1000-3000mm wide, 2000-12000mm longYield strength 245MPa, tensile strength 400-510MPa, elongation ≥17%JIS G3101-2004



Chemical Composition
C
CuFeMnPSiS
0.25~0.2900.2098.01.03
0.040
0.2800.050


Mechanical Properties

Limit Tensile StrengthTensile Strength,Yield StrengthElongation at Break(Unit: 200mm)Elongation at Break(Unit: 50mm)Modulus of ElasticityBulk Modulus(Typical for Steel)Poisson's RatioShear Modulus
Metric400~550MPa250MPa20%
23%
200GPa140GPa0.26079.3GPa
Imperial58000~79800psi36300psi20.0%23.0%29000ksi20300ksi0.26011500ksi
