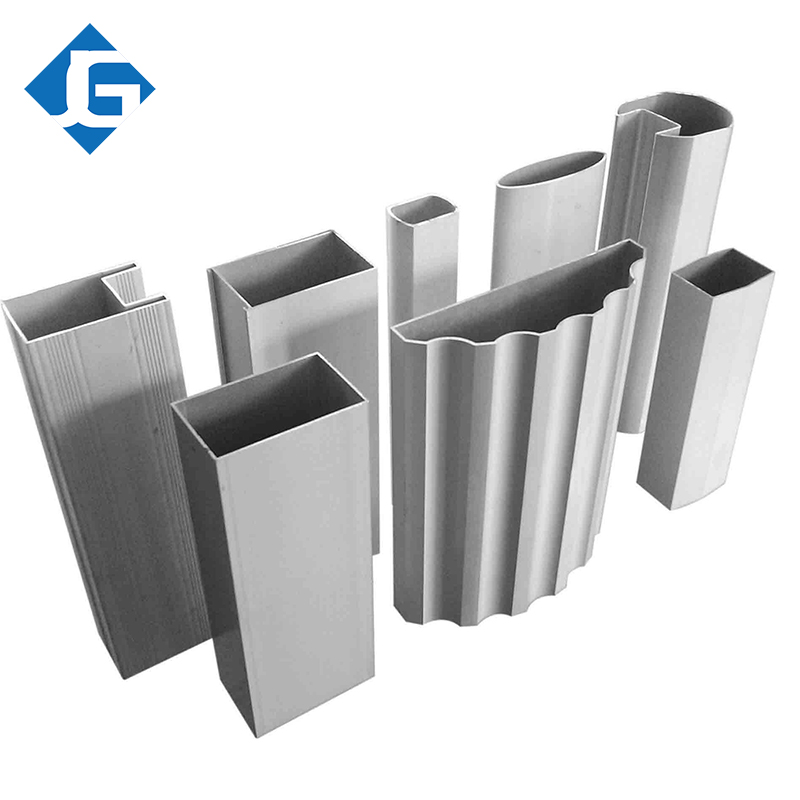

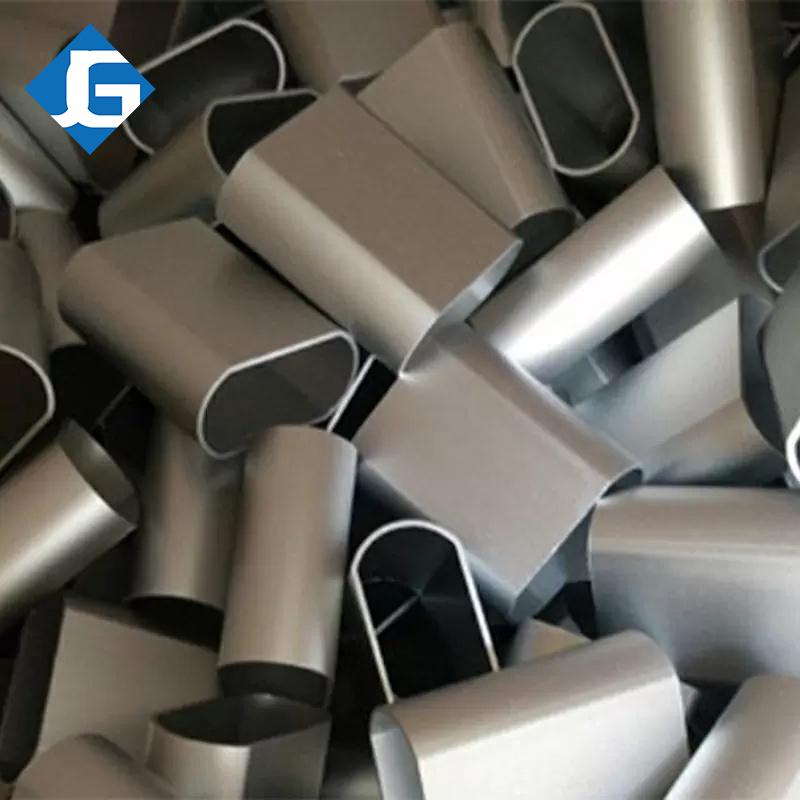

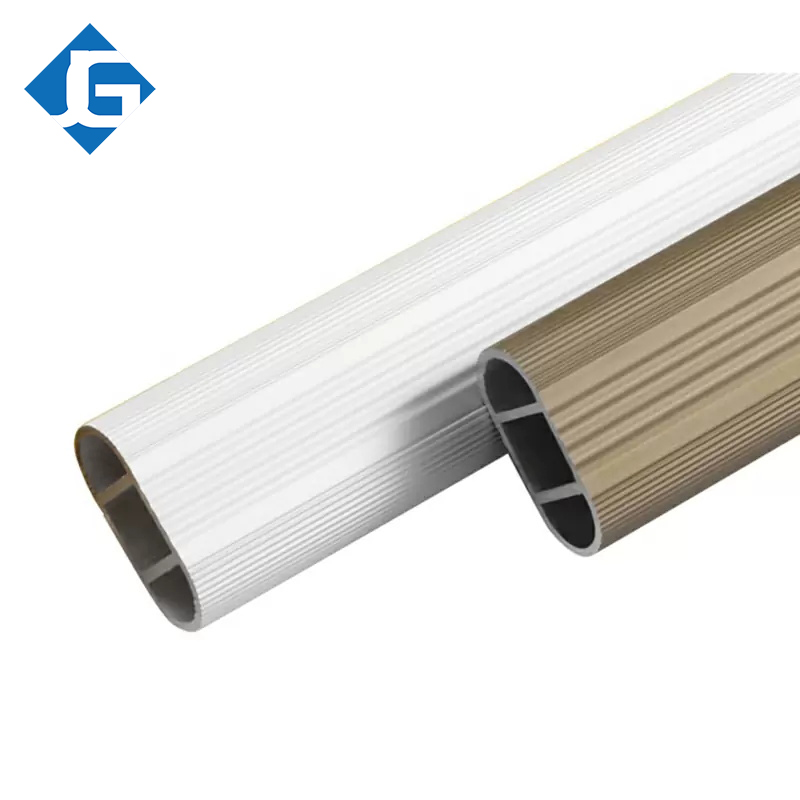

Shaped tube
Aluminum tube is a kind of non-ferrous metal tube, which refers to a metal tubular material that is made of pure aluminum or aluminum alloy and is hollowed along its entire longitudinal length.

Contact: Bojana

Phone: +86 18305305398

Whatsapp: +86 18305305398

Email: erya.lv@s-materialgroup.com

Wechat: +86 18305305398

Contact us
Product Parameters
Product introduction

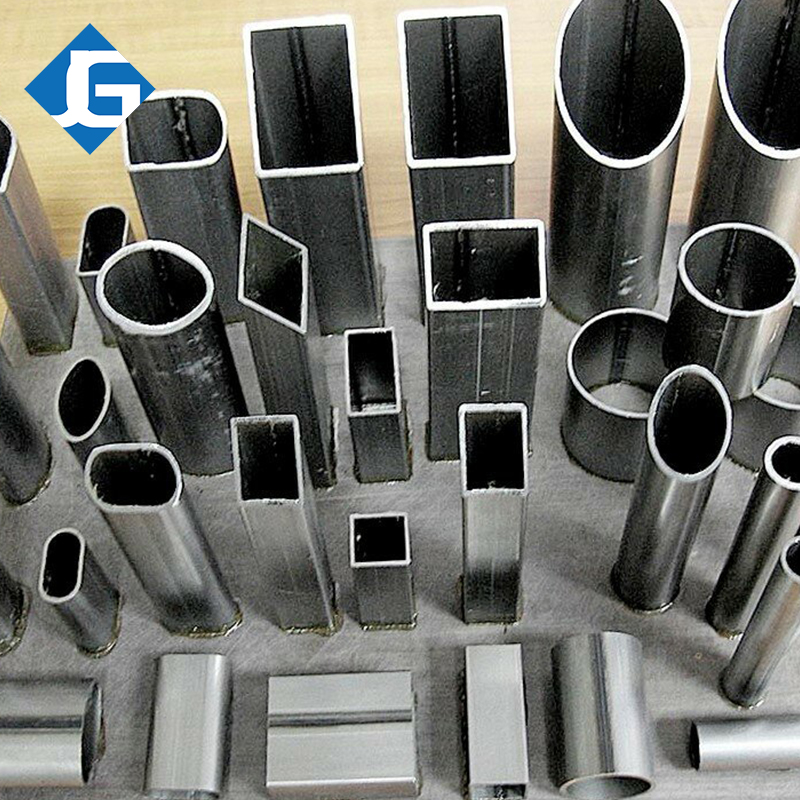

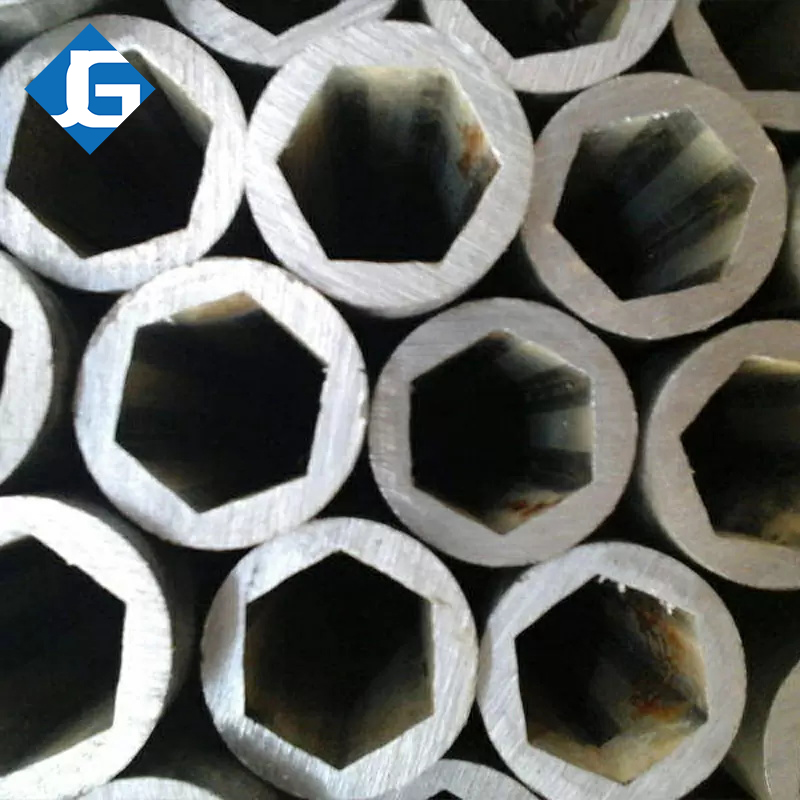

The main features of special-shaped tubes include large moment of inertia and section modulus, as well as large bending and torsion resistance. These features enable special-shaped tubes to greatly reduce structural weight and save steel. Special-shaped tubes are widely used in various structural parts, tools and mechanical parts. Compared with round tubes, special-shaped tubes show better performance when subjected to bending and torsion loads. In addition, special-shaped tubes also have the following performance indexes: Hardness: The hardness of special-shaped steel pipes is an indicator of its ability to resist local indentation, usually measured by the indentation hardness method. Fatigue performance: The ability of special-shaped steel pipes to work under cyclic loads, that is, the performance of resisting fatigue damage. Impact toughness: The ability of metals to resist damage when subjected to impact loads. Strength: Including tensile strength, compressive strength, bending strength, shear strength, etc., it is a measure of the ability of metal materials to resist damage under static loads.




ItemAluminum/Aluminium Tube/Pipe
Material1000 series: 1050, 1060, 1070, 1080, 1100, 1435, etc2000 series: 2011, 2014, 2017, 2024, etc3000 series: 3002, 3003, 3104, 3204, 3030, etc5000 series: 5005, 5025, 5040, 5056, 5083, etc6000 series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082, etc7000 series: 7003, 7005, 7050, 7075, etc
Size / ThicknessGeneral profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um.

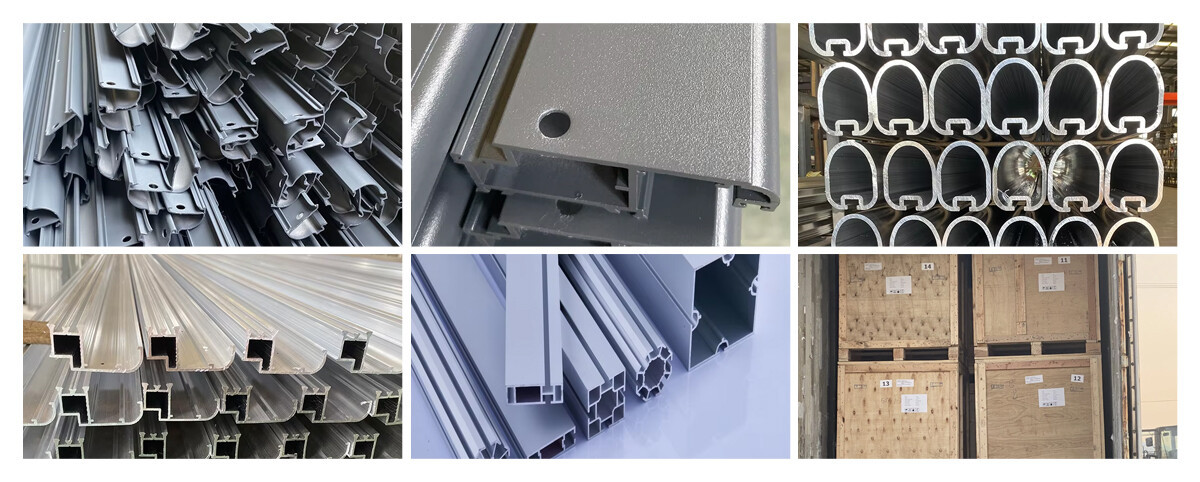

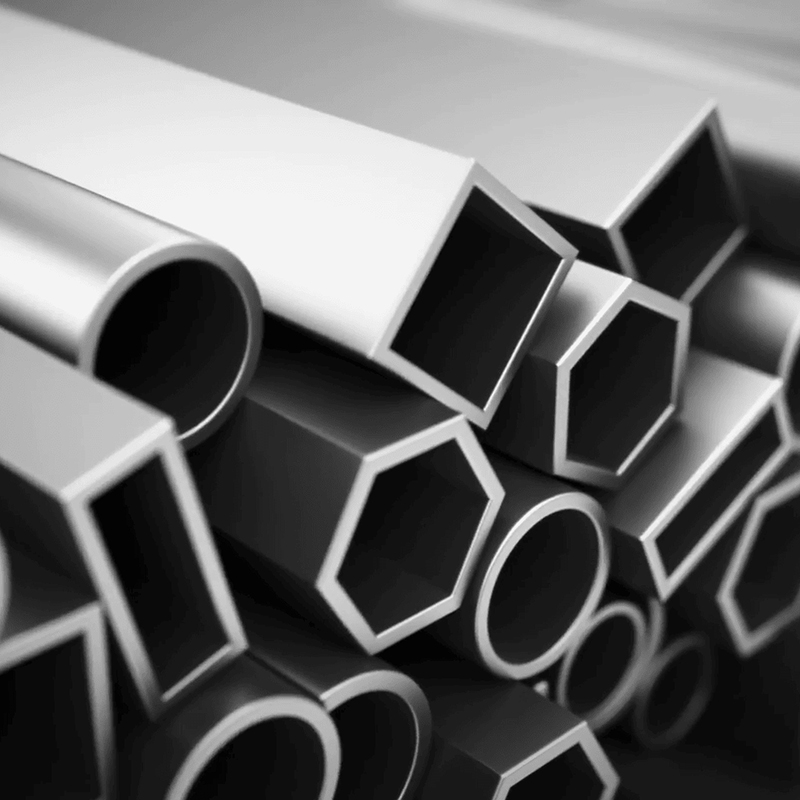

Shapesquare, round, t shaped, rectangular, customized
Surface treatmentmill finish, anodizied , powder coating , wood grain, sand blasting , and so on
Colorssilver , black , blue, wood color , RAL powder coating color and so on
Certificate and StandardCQM, SGS, CE, BV, SONCAP / GB, ISO, JIS, AS, NZS, QUALICOAT, QUOLANOD availa




Specifications (mm)Thickness (mm)Area (cm²)Weight (kg/m)
25x251.21.420.179
30x301.21.710.219
40x401.22.290.292
50x501.22.850.366
60x601.23.420.440
20x301.01.580.168
30x401.02.060.214
40x601.03.230.337
50x801.04.400.460
20x401.21.870.235
30x601.22.850.361
40x801.23.800.488
50x1001.24.760.614
