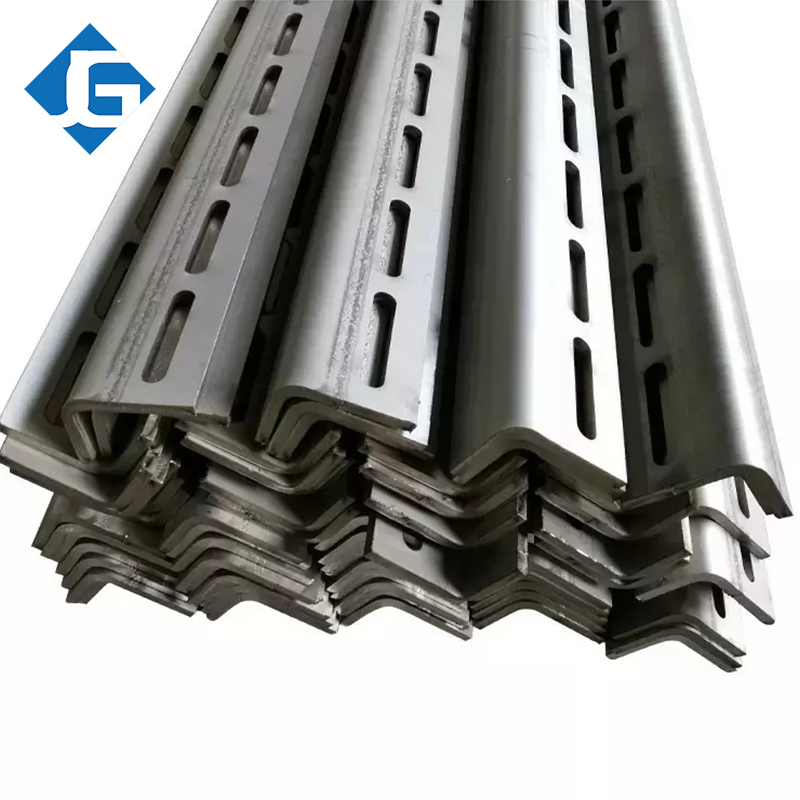

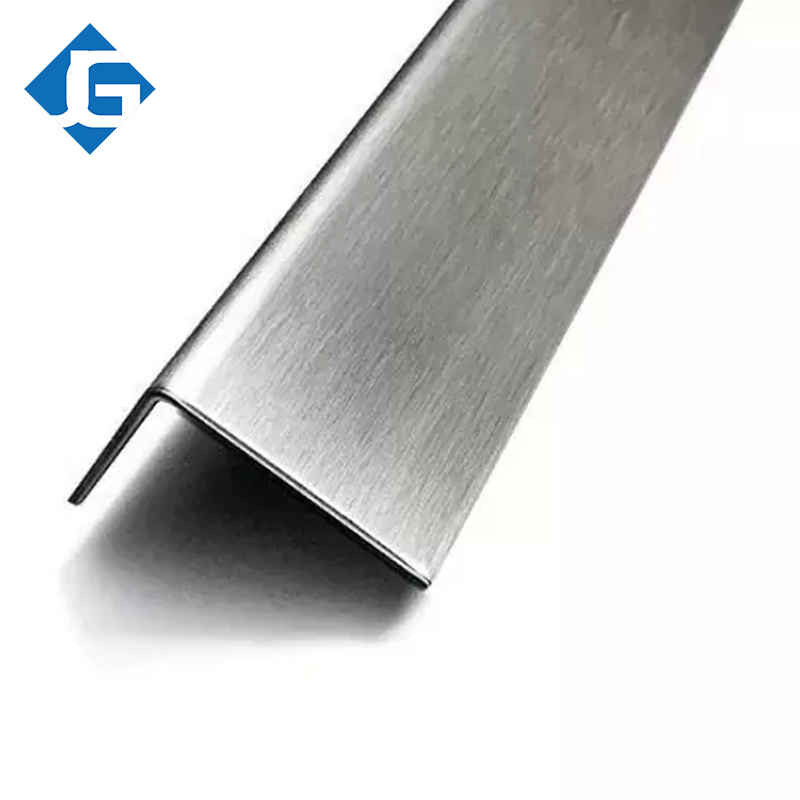

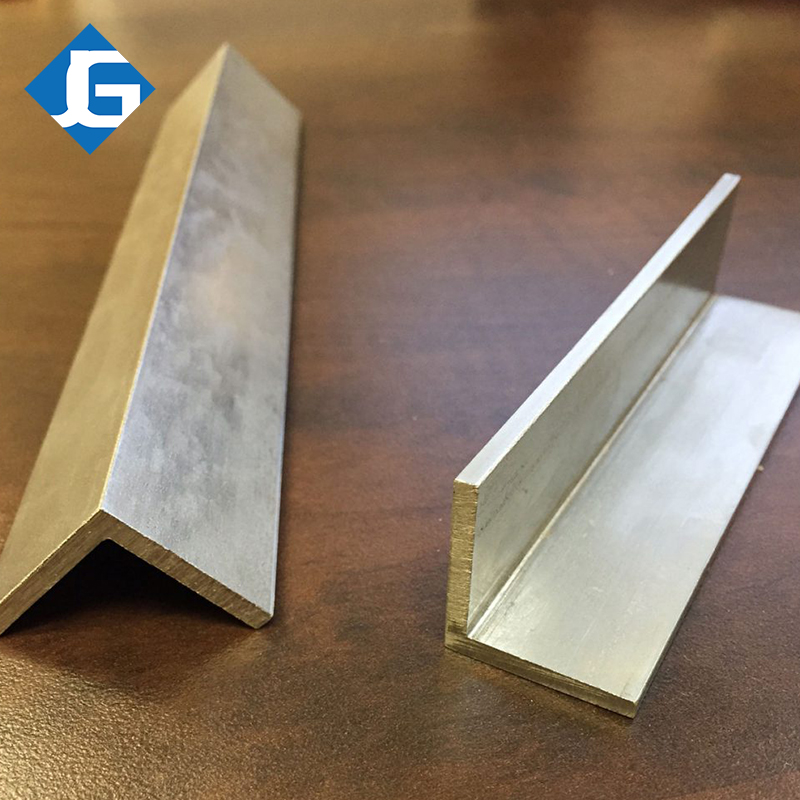

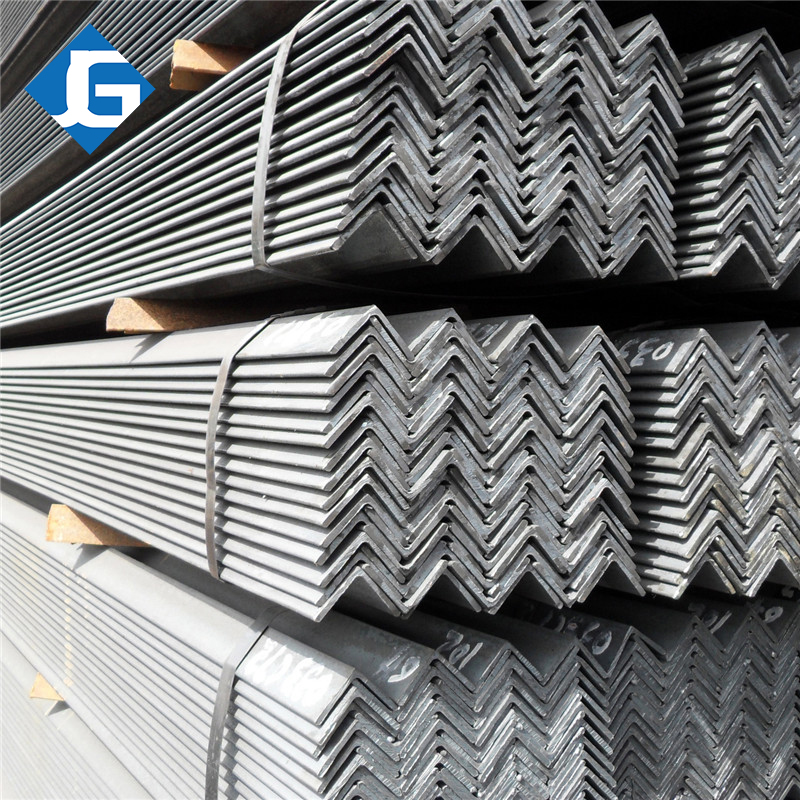

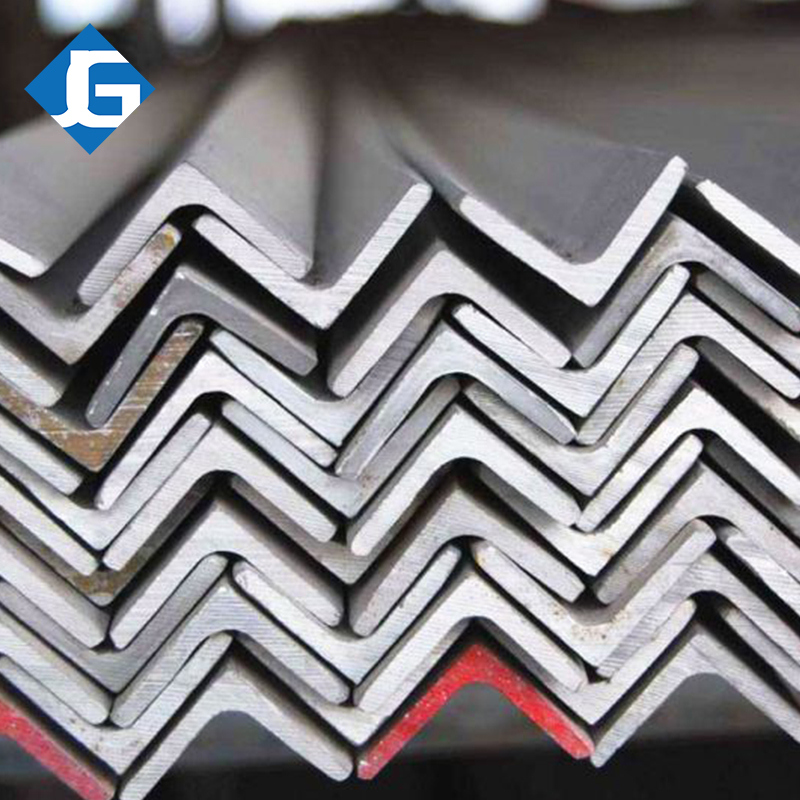

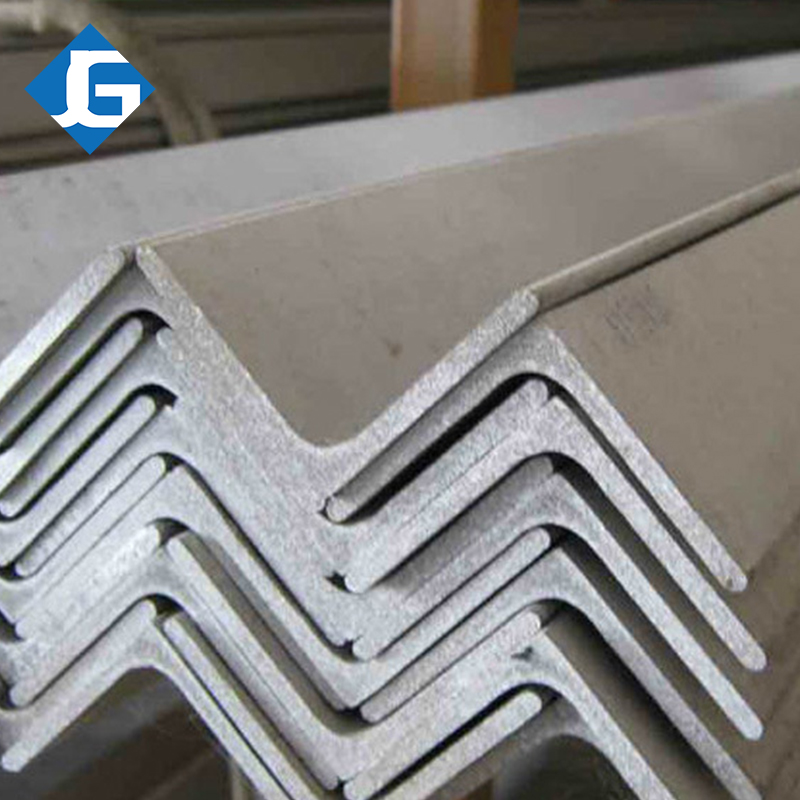

Angle bar
Angle Steel Is A Carbon Structural Steel For Construction, Which Is A Section Steel With A Simple Section, Mainly Used For Metal Components And The Frame Of A Workshop.

Contact: Eric zhang

Phone：+8615726162581
Whatsapp：+8615726162581
Email：zhong.zhang@s-materialgroup.com
Contact us
Product Parameters
Product introduction




25 mm, 3 mm edge thickness equilateral stainless steel angle. It can also be expressed by model, which is the number of centimeters of the edge width, such as ∠3#. The model does not indicate the size of different edge thicknesses in the same model, so the edge width and edge thickness of the stainless steel angle should be filled in in full on the contract and other documents to avoid using the model alone. The specifications of hot-rolled equilateral stainless steel angle are 2#-20#.Stainless steel angle can be composed of various load-bearing components according to different structural needs, and can also be used as connectors between components. It is widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.Stainless steel angle belongs to carbon structural steel for construction. It is a simple cross-section steel, mainly used for metal components and factory frames. In use, it is required to have good weldability, plastic deformation performance and certain mechanical strength. The raw material billet for producing stainless steel angle steel is low-carbon square billet, and the finished stainless steel angle steel is delivered in hot-rolled, normalized or hot-rolled state.


MaterialA36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B,S235JR, S355JR, S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540
Scope of ProductionH100*100-H400*400, H150*75 -H900*300
Thickness1-30mm
Width15-400mm
Length6m, 9m, 12m or according to customer requirements
TechnologyHot Rolled, Welded
StandardASTM, AISI, JIS, GB, DIN, EN
SurfaceGalvanized, Painted or according to your requirements
Supply Capacity2000 tons/Day
Business TypeManufacturer
CertificateISO, SGS, BV
ApplicationWidely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.



equal angle bar (A*T)
Size(mm)Theoretical weight(kg/m)Size(mm)Theoretical weight(kg/m)Size(mm)Theoretical weight(kg/m)
25*31.12475*77.976110*1422.809
25*41.45975*89.03125*815.504
30*31.37375*1011.089125*1019.133
30*41.78680*67.376125*1222.696
40*31.85280*78.525125*1426.193
40*42.42280*89.658140*1021.488
40*52.97680*1011.874140*1225.522
50*43.05990*68.35140*1429.49
50*53.7790*79.658140*1635.393
50*64.46590*810.946160*1024.729
60*54.5290*1013.476160*1229.391
60*65.4290*1215.94160*1433.987
63*54.822100*69.366160*1638.518
63*65.721100*710.83180*1233.159
63*87.469100*812.276180*1438.518
63*109.151100*1015.12180*1643.542
70*55.397100*1220.611180*1848.634
70*66.406100*1623.257200*1442.894
70*77.398110*711.928200*1648.68
70*88.373110*813.532200*1854.401
75*55.818110*1016.69200*2060.056
75*66.905110*1219.782


Unequal angle(A*T)
Size(mm)Theoretical weight(kg/m)Size(mm)Theoretical weight(kg/m)Size(mm)Theoretical weight(kg/m)
25*16*30.91275*50*87.431125*80*711.066
32*20*31.17175*50*109.098125*80*812.551
32*20*41.52280*50*55.005125*80*1015.474
40*25*31.48480*50*65.935125*80*1218.33
40*25*41.93680*50*76.848140*90*814.1
45*28*31.68780*50*87.745140*90*1017.475
45*28*42.20390*56*55.661140*90*1220.724
50*32*31.90890*56*66.717140*90*1423.908
50*32*42.49490*56*88.779160*100*1019.872
56*36*32.153100*63*78.722160*100*1427.274
56*36*42.818100*63*89.878160*100*1630.853
56*396*53.466100*63*1012.142180*110*1022.273
63*40*43.185100*80*68.35180*110*1226.464
63*40*53.92100*80*79.656180*110*1430.589
63*40*64.638100*80*810.946180*110*1634.649
70*45*54.403100*80*1013.476200*125*1229.761
70*45*65.218110*70*68.35200*125*1434.436
70*45*76.011110*70*79.656200*125*1639.045
75*50*54.808110*70*810.946200*125*1843.588
75*50*65.699110*70*1013.476
