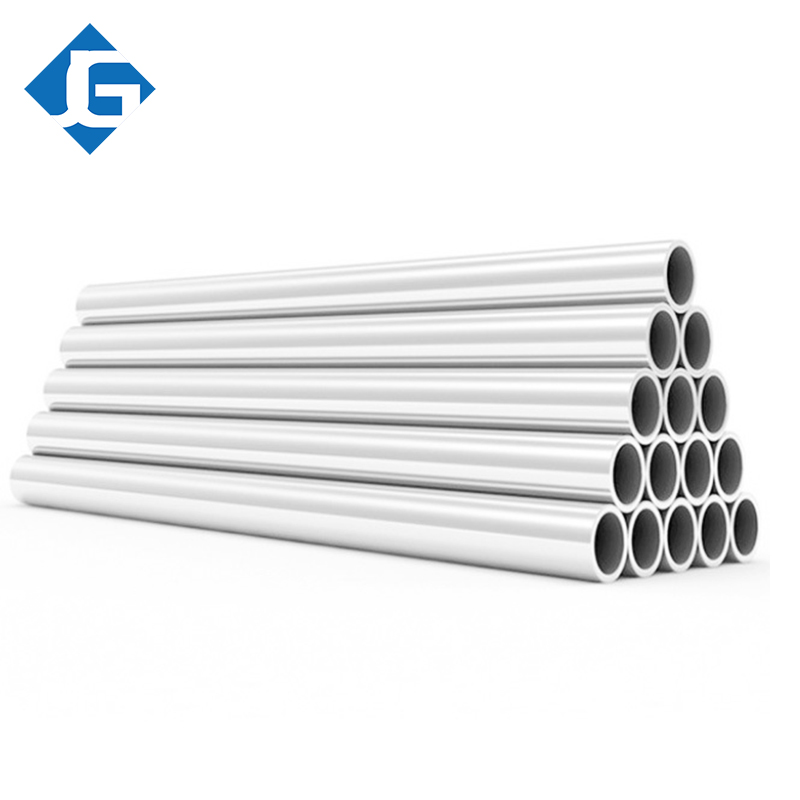

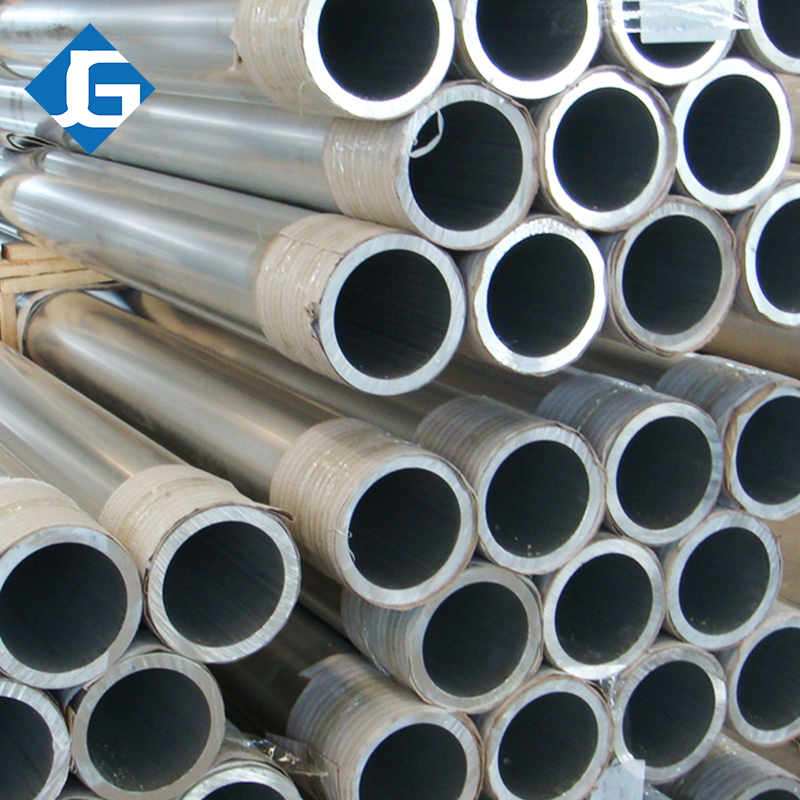

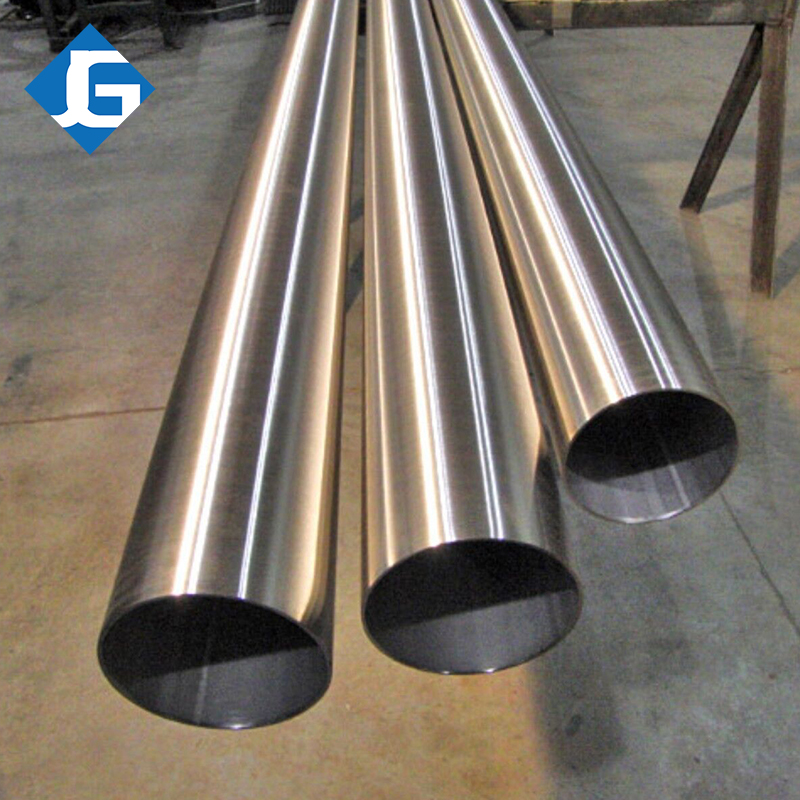

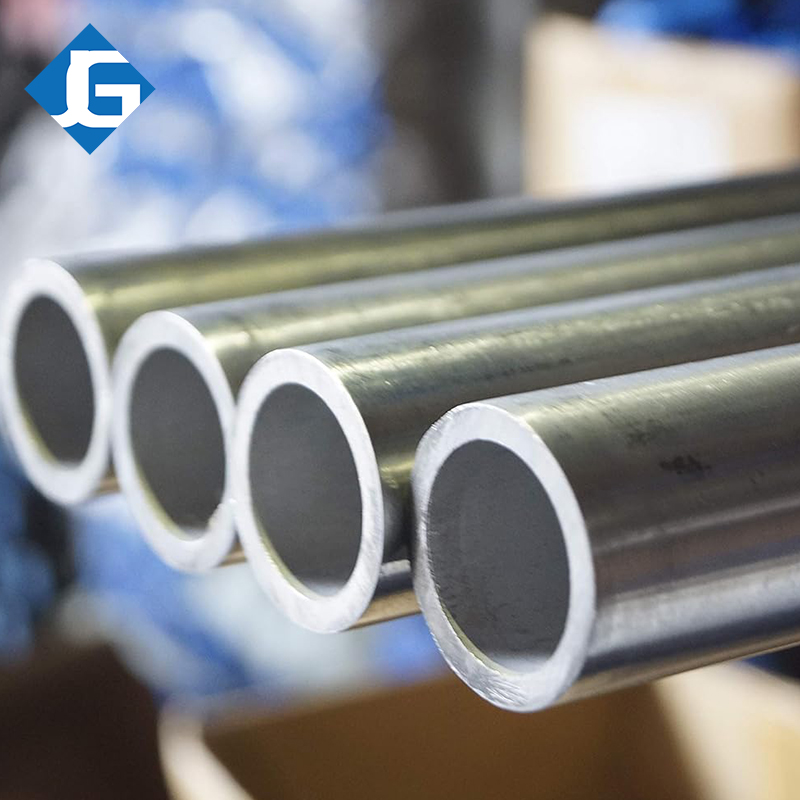

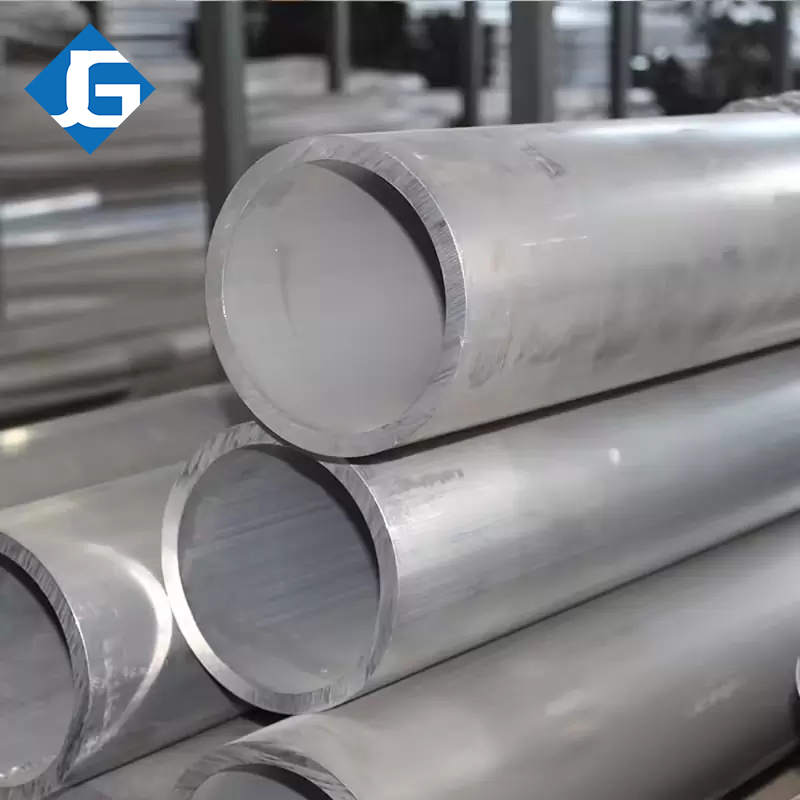

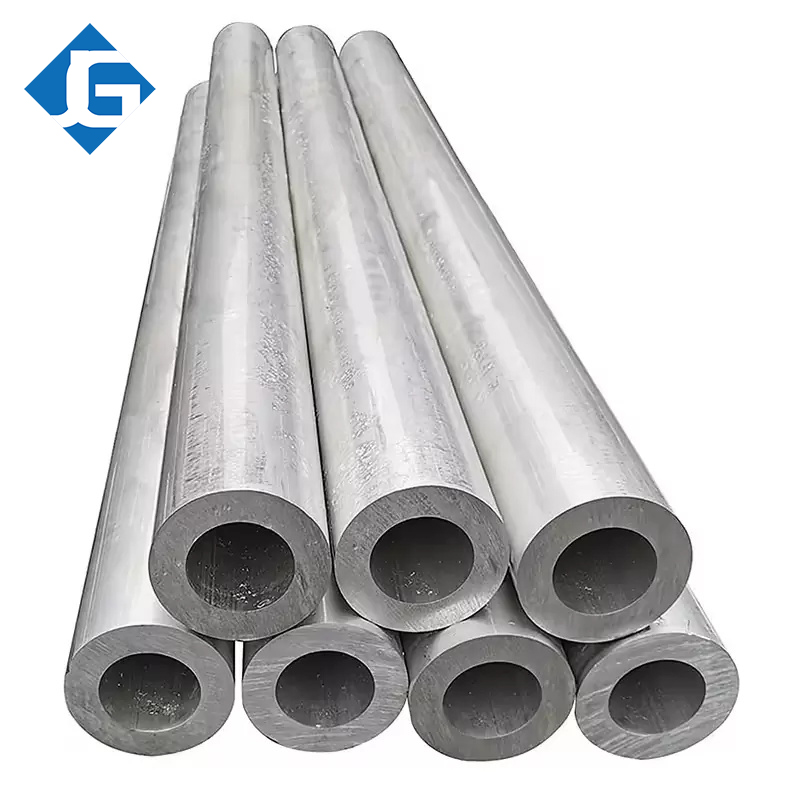

Round tube

Aluminum tube is a kind of non-ferrous metal tube, which refers to a metal tubular material that is made of pure aluminum or aluminum alloy and is hollowed along its entire longitudinal length.

Contact: Bojana

Phone: +86 18305305398

Whatsapp: +86 18305305398

Email: erya.lv@s-materialgroup.com

Wechat： +86 18305305398

Product Parameters

Product introduction

The characteristics of aluminum tubes mainly include light weight and high strength, corrosion resistance, beautiful appearance, easy processing, environmental protection and recyclability, but they also have the disadvantages of high price, inferior strength to steel, easy deformation, not resistant to high temperature, and susceptible to corrosion in specific environments.Light weight and high strength: The density of aluminum tubes is small, but the strength is high, which makes it perform well in occasions where it needs to bear a certain load but hopes to reduce the overall weight, such as aviation, automobile and other fields.Corrosion resistance: Aluminum tubes can resist the erosion of various chemical substances, and can maintain good performance even in harsh environments such as humidity and rain, extending the service life.Beautiful appearance: After the surface of aluminum tubes is processed, it can present the luster and texture of metal, which looks beautiful and generous, and is widely used in decoration, construction and other fields.Easy to process: Aluminum tubes have good plasticity and processability, and can be processed through cutting, bending, welding and other processes to meet the needs of different shapes and sizes. ‌Environmentally friendly and recyclable: Aluminum is a recyclable metal. The manufacturing and recycling process of aluminum tubes produces less pollution, which is conducive to environmental protection and sustainable development. ‌However, aluminum tubes also have some disadvantages: ‌Higher price: Compared with some traditional materials, the price of aluminum tubes is higher, which is mainly due to the relatively high cost of aluminum refining and processing. ‌Not as strong as steel: Although aluminum tubes have higher strength, their strength is still insufficient compared with traditional materials such as steel. ‌Easy to deform: Aluminum tubes are prone to deformation such as bending or twisting when subjected to external forces. ‌Not resistant to high temperatures: Aluminum tubes have a low melting point and poor high temperature resistance. They may soften or melt in high temperature environments. ‌Susceptible to corrosion: Although aluminum tubes have good corrosion resistance, they may still be affected by corrosion in certain specific environments, such as strong acids, strong alkalis and other harsh conditions. ‌

Wall Thickness	0.4-20mm or customized
Outer Diameter	10-2500mm or customized
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050 1060 1070 1100 1200 1235 etc.3000 Series: 3003 3004 3005 3104 3105 3A21 etc.5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc.6000 Series: 6061 6063 6082 6A02 etc.7000 Series: 7050 7475 7075 etc.8000 Series: 8A06 8011 8090 etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement
Length	5-2000mm or customized
Certificate	ISO, SGS, BV

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.15	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Tensile Strength (MPa)	Test Stress0.2% (MPa)	HardnessHB	Elongation Rate(%)
105-145	≥85	≥34	≥12

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion	Resistivity
2.71 Kg/m³	650°C	71 GPa	222 W/m.K	24 × 10-6/K	0.282 × 10-6Ω.m

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate
