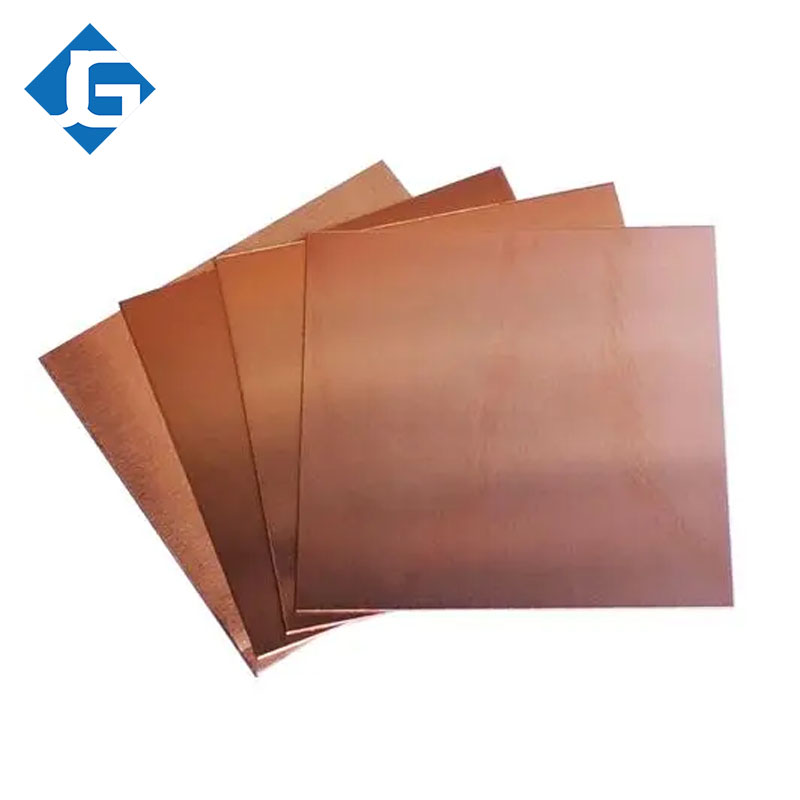

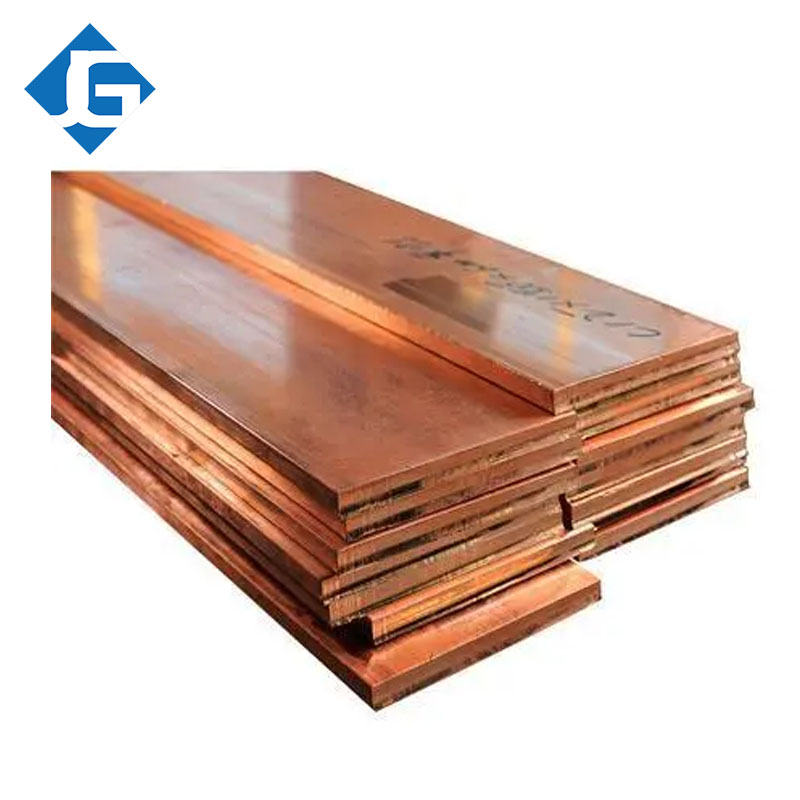

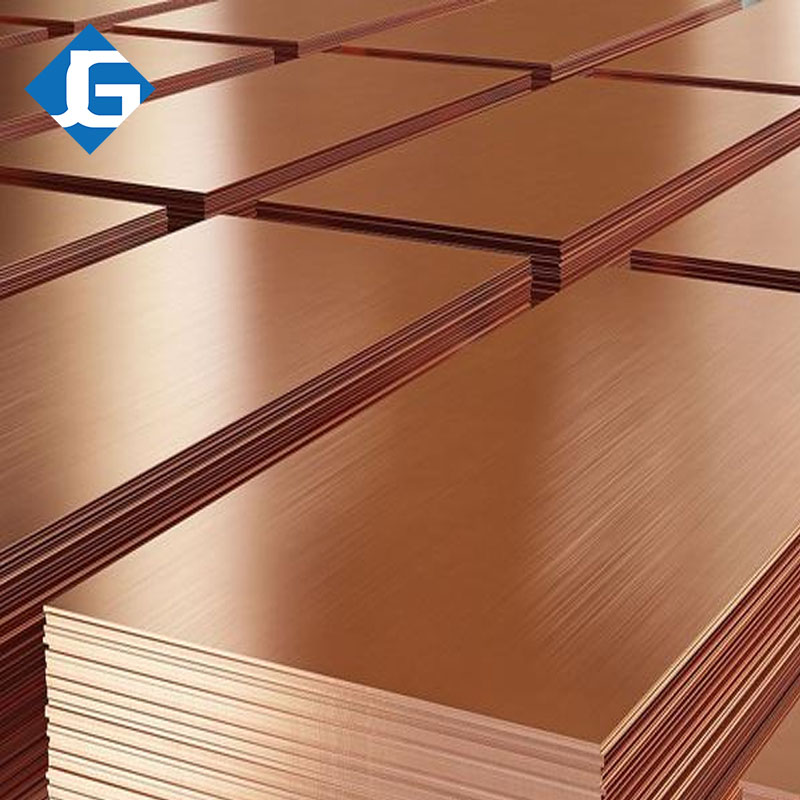

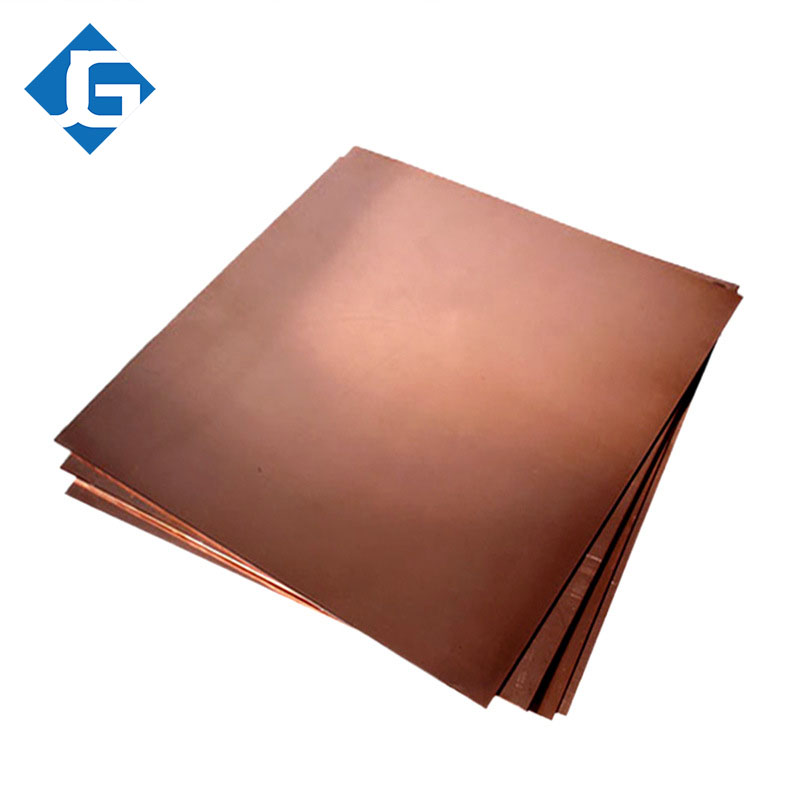

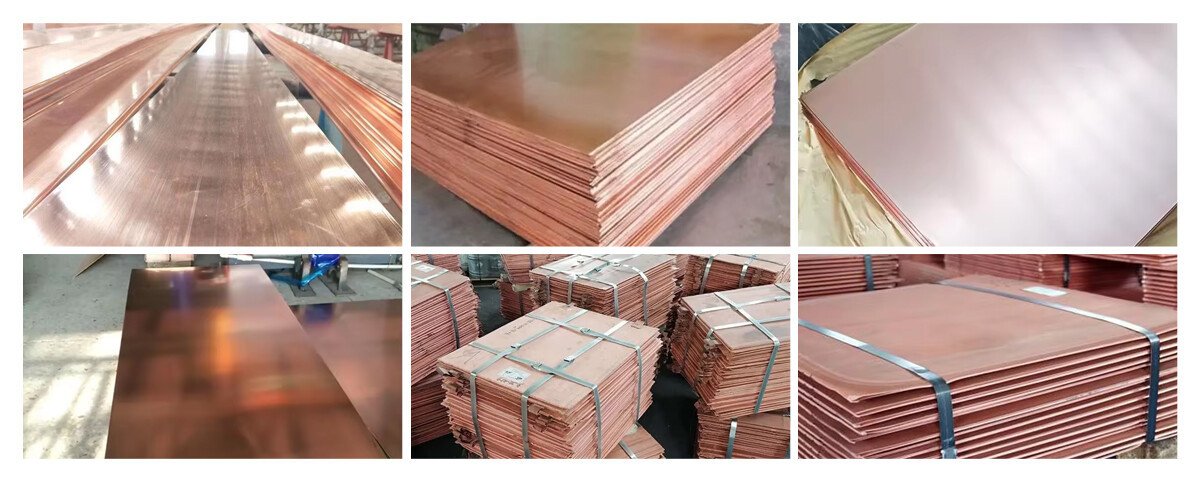

Copper Plate
Red copper plate is a kind of copper material with excellent functions and very convenient production.

Contact: Bojana

Phone: +86 18305305398

Whatsapp: +86 18305305398

Email: erya.lv@s-materialgroup.com

Wechat： +86 18305305398

Contact us
Product Parameters
Product introduction




Copper plate is an important metal material with the following characteristics:1. Good electrical conductivity and thermal conductivity: Copper plate has high electrical conductivity and thermal conductivity, and is an ideal material for the manufacture of electrical and electronic equipment.2. High corrosion resistance: Copper plate has good corrosion resistance in the atmosphere, fresh water, seawater and many acid and alkali media, so it is widely used in chemical industry, water treatment, shipbuilding and other fields.3. Good processing performance: Copper plate can be processed by rolling, stretching, forming and other processing methods to make it into products of various shapes.




Thickness0.1-300mm or customized
Width10-3000mm or customized
BrandC10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930，C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200，T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
SurfaceGrinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing as Required
CertificationISO, SGS, BV, etc.
Port of LoadingAny Port in China
Length100-12000mm or customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
Payment MethodFOB, CRF, CIF, EXW Acceptable, etc.
Delivery TimeReceived 30% after deposit 7-15 working days




Copper+SilverWith AgTinSnZincZnLeadPbNickelIt isIronFe
≥ 99.90≤ 0.002≤ 0.005≤ 0.005≤ 0.005≤ 0.005
AntimonySbSulphurSArsenicAsBismuthBiOxygenOImpurity
≤ 0.002≤ 0.005≤ 0.002≤0.001≤ 0.06≤0.1


Tensile StrengthKb (MPa)ElongationD10 (%)ElongationD5 (%)
≥ 275≥ 5≥10


Uses and Applications of Copper
Power IndustryPower transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.
Electronic IndustryElectric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuitCopper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical IndustryThe main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosionVarious media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation IndustryIn the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraftCopper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical IndustriesIn addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heatingThe induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light IndustryCopper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.
Emerging Industries and High-tech FieldsCopper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.
